Mini Mobile Concrete Batching Machine

Mini Mobile Concrete Batching Machine
Mini Mobile Concrete Batching Machine
Send Inquiry
Product Code : 06
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 500000 INR
  • Price Range
  • 450000.00 - 500000.00 INR
Product Specifications
  • Product Type
  • CONCRETE BATCHING PLANT
  • General Use
  • CONSTRUCTION
  • Type
  • Cement Mixer
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Cooling System
  • Hydraulic Oil Cooling
  • Method
  • Hydraulic Pressure
  • Voltage
  • 440 Volt (v)
  • Color
  • Customized
  • Warranty
  • 1 YEAR
Product Description

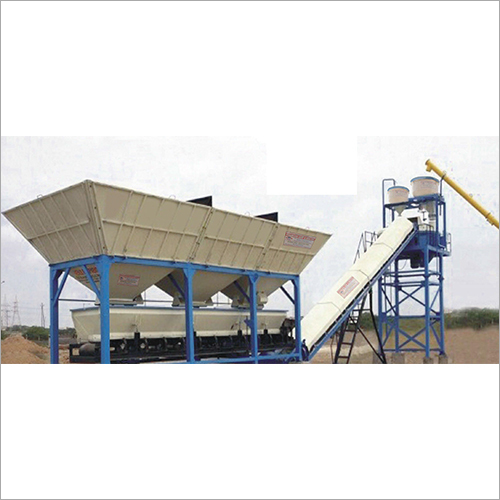

Vishaw Karma Mini Mobile Concrete Batching Plant is crafted  at our advance manufacturing unit using premium quality components with the help of pioneering techniques in accordance with international industry standards. Optimum performance and simple operation are some of its features which makes it high in demand.

Vishaw Karma Mini Mobile Concrete Batching Plant have hopper wherein Cement , Sand ,& other Aggregates are Digitally Weighed and Loaded in Its Mixer Drum.


Smart Hopper Design to Reduce Spillage.

Automatic Water Control

Compact Design for Easy Transportation and Shifting by Towing Also.

Printout and USB System.

Options of Single, Two , Three  and Four Bins.


  • Grade: Automatic
  • Control : PLC Control
  • Power Type : Electric
  • Voltage: 220- 440 Volt
  • Material : Iron, Steel
  • Condition : New
  • Capacity : 12 and 15 m3/hr
  • Application : Construction Industry
  • Delivery time depend on location

Technical Specification

Model

VKRM 550

VKRM 800

VKRM 1050

Hopper Capacity

550 Ltr.

750 Ltr.

1050 Ltr.

Batch Capacity

450 Ltr.

600 Ltr.

750 Ltr.

Machine Output

10 cum / Hr.

12 cum / Hr.

15 cum / Hr.

Power

7.5 HP - 3 Phase

10 HP - 3 Phase

15 HP - 3 Phase

Water Tank Capacity

100 Ltr

120 Ltr

150 Ltr.

Weighing System

Load Cell Based with Digital Display Batch Controller

Hydraulic Pump

40 LPM Gear Pump @ 180 Bar

Gear Ring & Roller

Accurately Machined with Gear Cutting Operation Supported by Heavy Duty Twin Rollers Guide

Wheels Pneumatic

Wheels (4 Nos.) 600 x 16

Jack Leveling

Pin Type (4 Nos.)

Weight (Kgs.) Approx

2350 Kgs.

2800 Kgs

3000 Kgs.

Control Panel

Microprocessor based control panel
