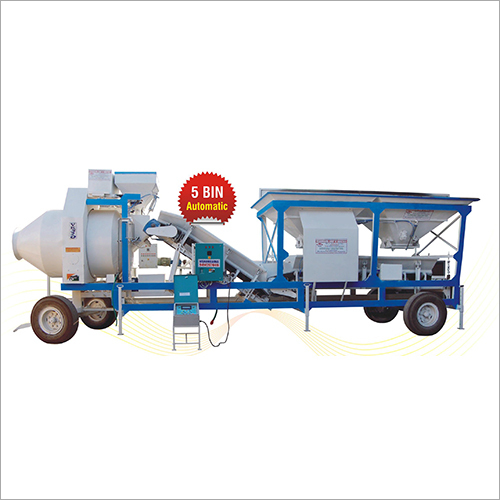

मोबाइल Concrete Batching Machine
उत्पाद विवरण:
मूल्य और मात्रा
- टुकड़ा/टुकड़े
- 1
- टुकड़ा/टुकड़े
व्यापार सूचना
- प्रति सप्ताह
- हफ़्ता
- Yes
- हमारी नमूना नीति के बारे में जानकारी के लिए हमसे संपर्क करें
- ऑल इंडिया
उत्पाद विवरण
मोबाइल Concrete Batching Machine is broadly used in the building industry to convey cement, fly ash and other materials used in construction. It is manufactured by making use of optimum grade components and the latest techniques as per the set industry standards.
There is a high quality मोबाइल Concrete Batching Machine offered by us that is concrete production equipment, which can reserve, weigh, and transport and discharge materials. Concrete batching machine can finish the batching procedure of sand, pebble and macadam according to the requirement of concrete proportion, which can automatically modify the drop. It is used is to batch cement, pebbles and sand for brick making process, after batching, users can produce quality concrete and bricks. मोबाइल Concrete Batching Machine is very easy to operate.
- Grade: Automatic
- Control : PLC Control
- Power Type : Electric
- Voltage: 220- 440 Volt
- Material : Iron
- Condition : New
- Warranty : 1 Year
- Delivery time depend on location
Technical Specification
| Model | VK 515 5 BIN | VK 51205 BIN | VK 525 5 BIN |
| Total Length | 10200 mm | 10600 mm | 10850 mm |
| Total Width | 2050 mm | 2200 mm | 2400 mm |
| Total Height | 3300 mm | 3650 mm | 3780 mm |
| Net Weight | 6 Ton Approx | 6.5 Ton Approx | 7 Ton Approx |
| Output Rate | 13-15 cum/hr. | 18-20 cum/hr. | 23-25 cum/ hr. |
| Output / Mix | 750 Ltr | 1250 Ltr. | 1600 Ltr. |
| Mixer Motor | 7.5 HP | 10 HP | 15 HP |
| Conveyor Motor | 5 HP / 3 HP | 5 HP / 3 HP | 5 HP / 3 HP |
| Cement Con. Motor | SHP | 5 HP | 7.5 HP |
| sand / Aggregate | 1/4 Hopper | 1/4 Hopper | 1/4 Hopper |
| Hopper Cap. Each | 1 cum | 1 cum | 1 cum |
| Water Pump | 1 HP | 1 HP | 1.5 HP |
| Vibrate Motor | 3No.x1/2HP | 3No.x1/2HP | 3No. x 1/2 HP |
| Air Compressor Motor | 2HPS. Phase | 2HPS.Phase | 2 HPS. Phase |
| Cement Hopper Cap | 750 Kg. | 1000 Kg | 1100 Kg. |
| Connected Power | 24 HP | 27.9 HP | 35.5 HP |
| DG Set | 50 KVA | 62 KVA | 62 KVA |
| Mixer Type | Drum | Drum | Drum |
| Water Tank Capacity | 100 Ltr | . 120 Ltr. | 150 Ltr. |
| Tyres | 4 No. | 4 No. | 4 No. |
| Tow Bar Facility | Yes | Yes | Yes |
